ROVER Quintet Australia
Technology
1983 - 1985

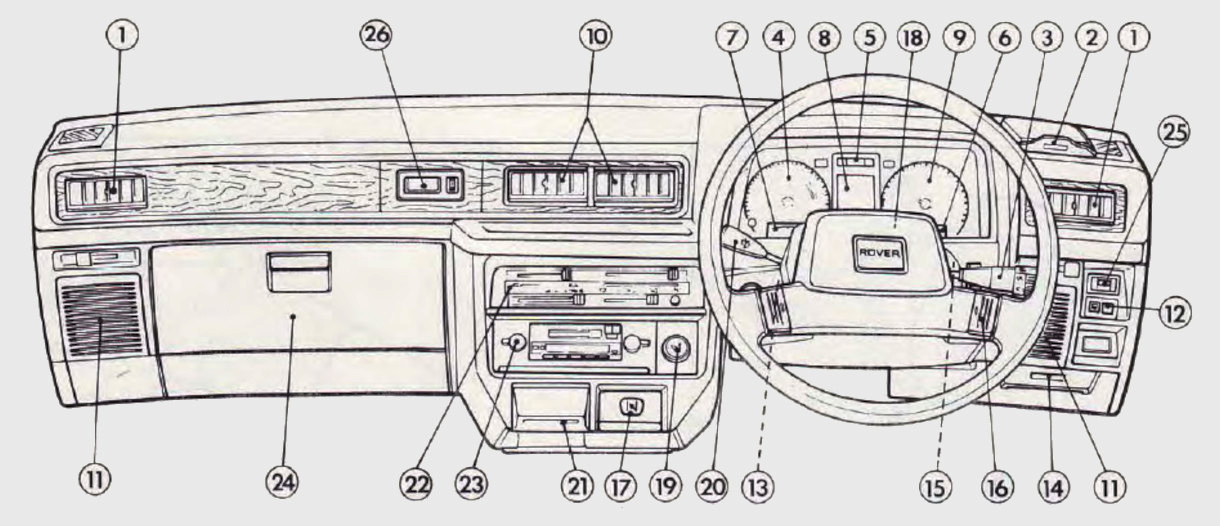

| ROVER Quintet Dashboard, Model Year 1983 | |||
|---|---|---|---|
| No. | Description | No. | Description |
| 1 | Side Vent Outlet | 14 | Fuse Box |
| 2 | Coin Box | 15 | Panel Brightness Control Knob |
| 3 | Light Switch / Turn Signal / Dip Switch | 16 | Horn Buttons |
| 4 | Tachometer | 17 | Choke Knob |
| 5 | Warning and Indicator Light Panel | 18 | Hazard Warning Light Switch |
| 6 | Fuel Gauge | 19 | Cigarette Lighter |
| 7 | Water Temperature Gauge | 20 | Windshield Washer / Wiper Switch |
| 8 | Safety Indicator Lights | 21 | Ashtray |
| 9 | Speedometer | 22 | Heating and Airconditioning Control Panel |
| 10 | Center Vent Outlets | 23 | Radio / Cassette |
| 11 | Radio Speaker | 24 | Glove Box |
| 12 | Rear Window Demist Switch | 25 | Sun Roof Control |
| 13 | Rear Window Washer / Wiper Switch | ||

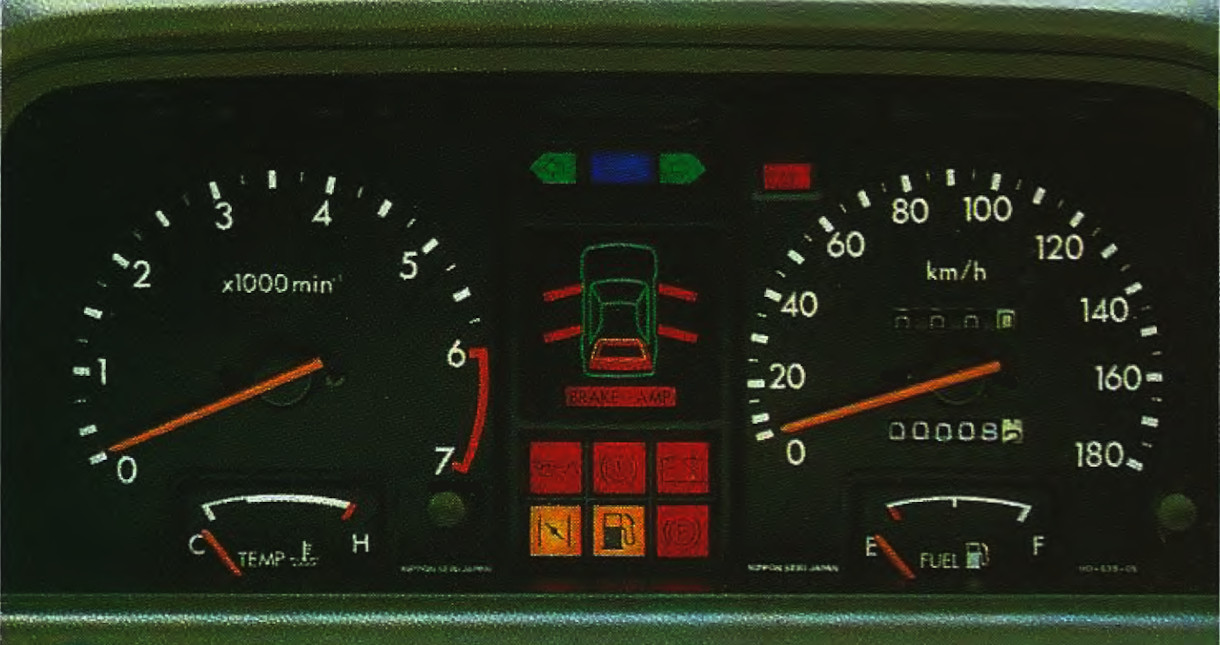

Here is another look at the instrument panel of the ROVER Quintet, 1983.
