ROVER P6/P6B

Technology - Bodywork

Dimensions and measuring points of the basic body of the ROVER P6/P6B

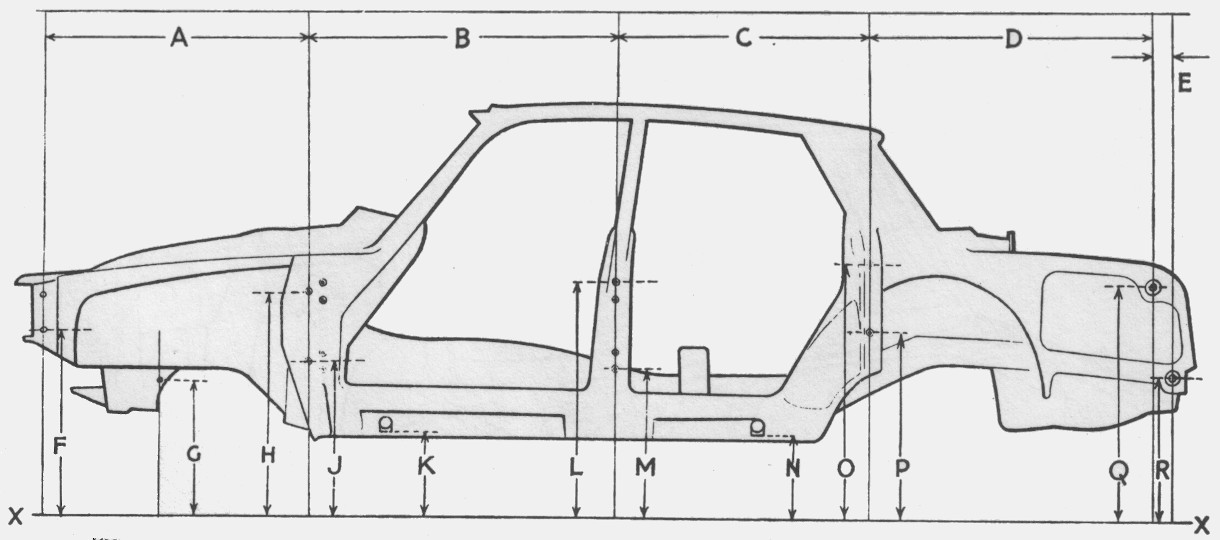

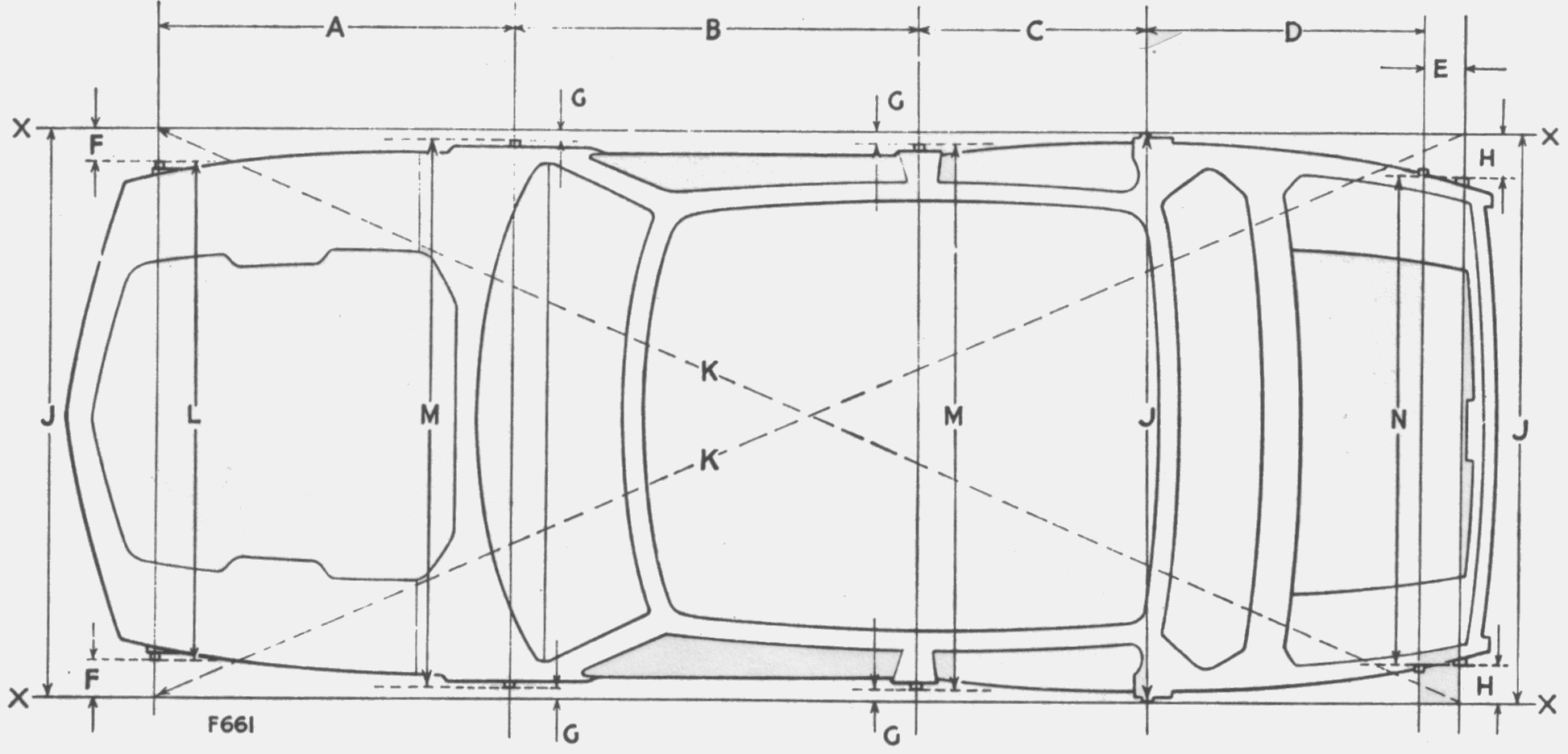

Side view dimensions			Bird's view dimensions
	mm	Inch		mm	Inch
A	937,42	36.906	A	937,42	36.906
B	1.043,78	41.093	B	1.043,78	41.093
C	860,42	33.875	C	860,42	33.875
D	974,72	38.375	D	974,72	38.375
E	87,31	3.437	E	87,31	3.437
F	19,84	4.781	F	736,60	29.000
G	15,87	0.625	G	518,32	20.406
H	149,22	5.875	H	874,31	34.421
J	1.576,38	62.062	J	639,36	25.171
K	4.210,84	165.781	K	418,70	16.203
L	1.333,50	52.500	L	913,60	35.968
M	1.544,63	60.812	M	621,50	25.468
N	1.277,93	50.312	N	402,82	15.859
			O	978,29	38.515
			P	740,49	29.546
			Q	897,33	35.328
			R	583,00	22.953
*A l l i n f o r m a t i o n w i t h o u t g u a r a n t e e*

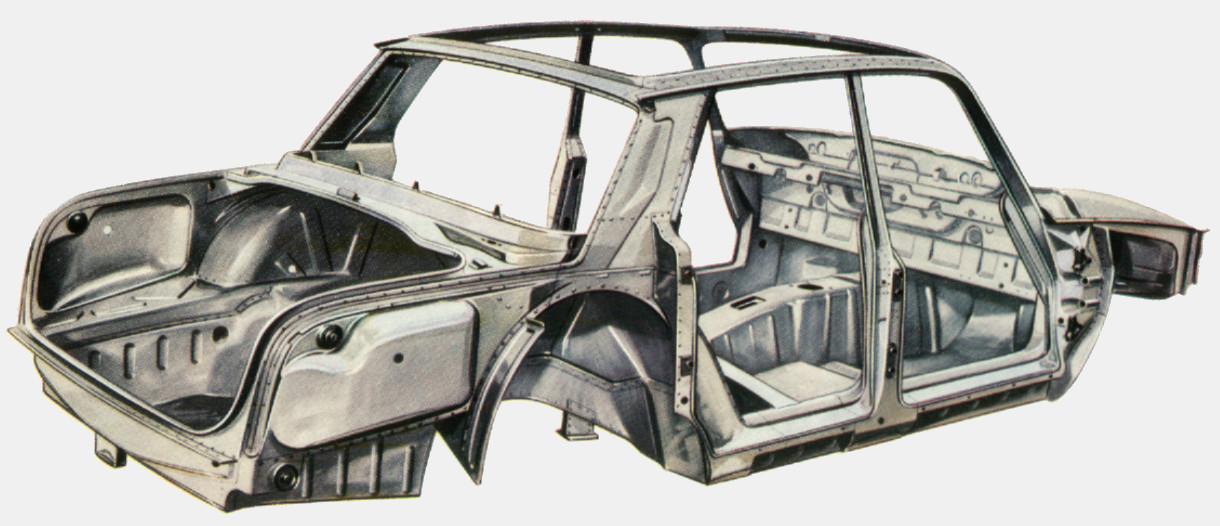

View of the base unit from the rear side ....

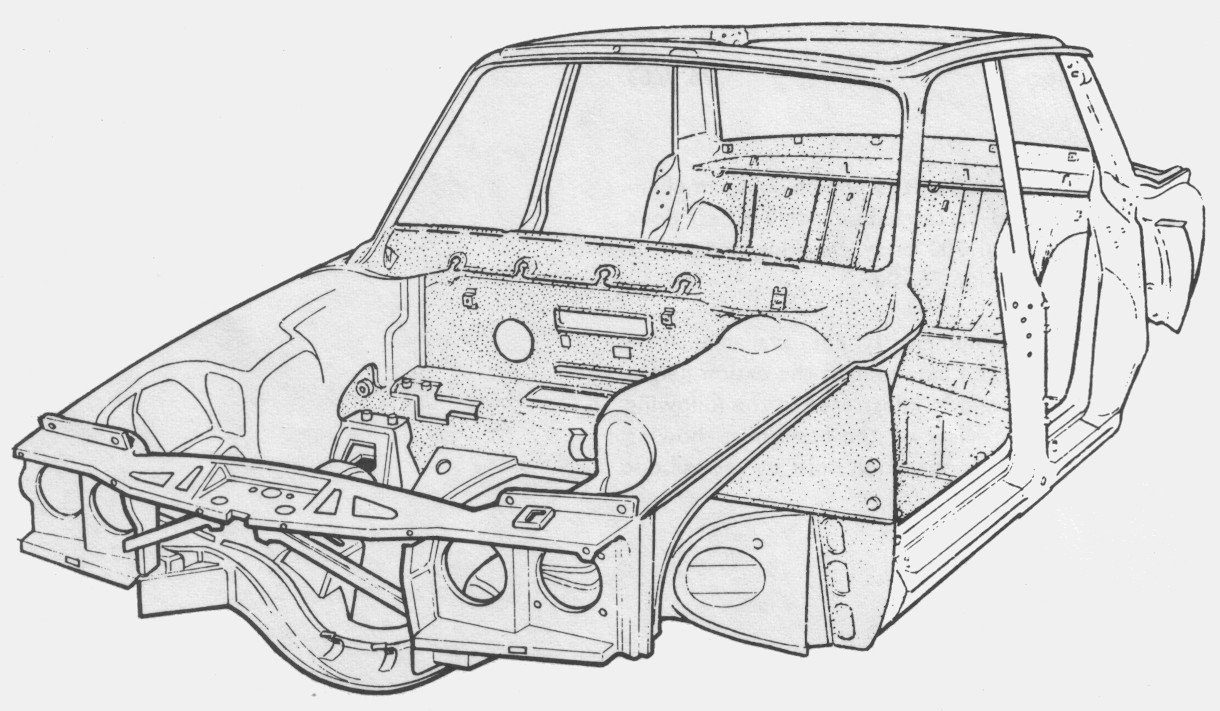

.... from the front side ....

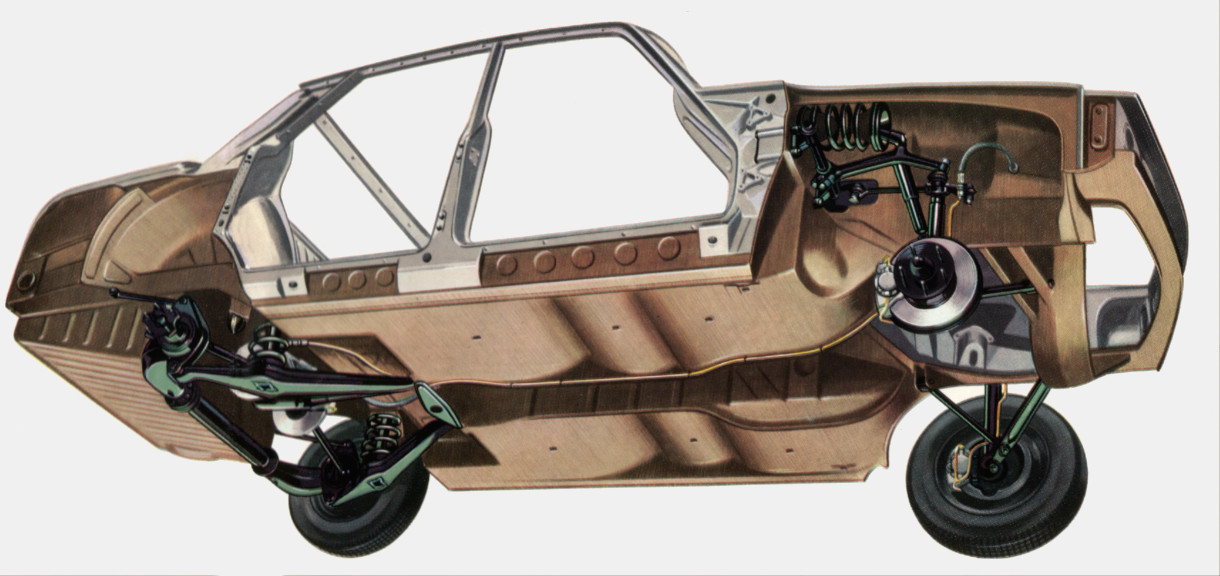

.... and from below.

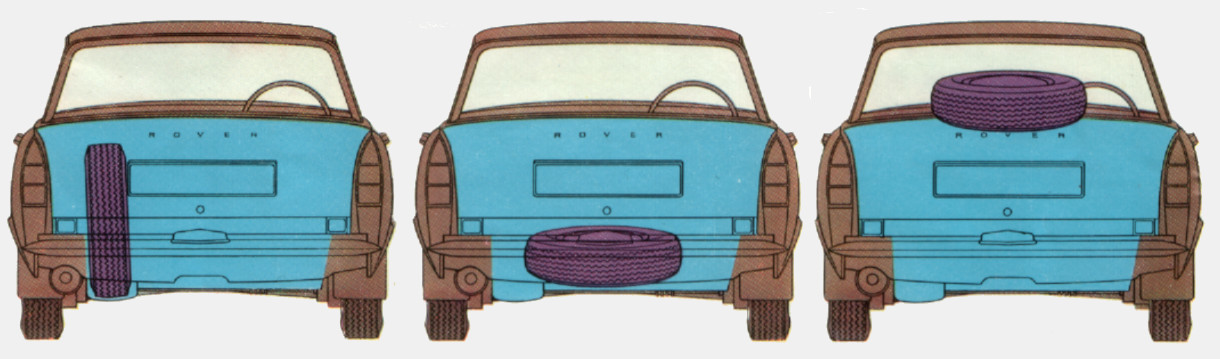

Possibilities to install the spare wheel in the ROVER P6.
