Comparison of Dashboards

The dashboards of the different versions and models of the SD1 series differ only slightly in the instrumentation and the decorative elements.

For comparison the dashboards of the year of construction 1980 are used.

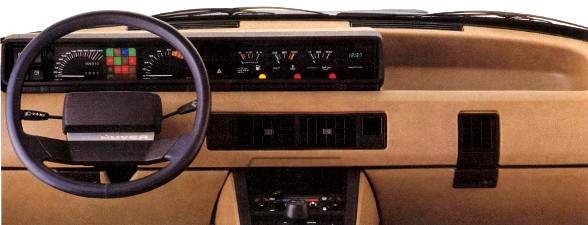

The model 2000 is only offered in the basic configuration.

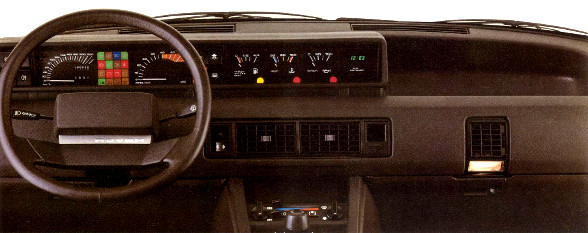

The six-cylinder models 2300 and 2600 show their drivers these controls.

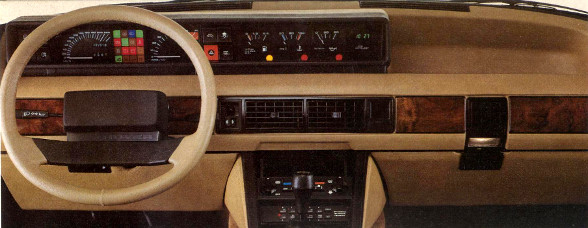

The ROVER 3500 Vanden Plas offers this dashboard with decorative wood applications.

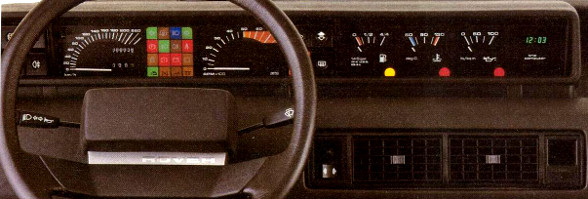

Another look at the indicators in detail.

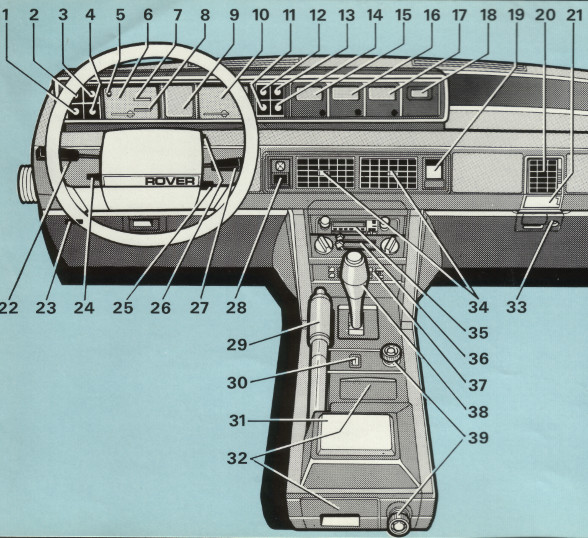

The description of the individual components is taken from the user manual of ROVER 3500 Vanden Plas of the year 1982.

1. Interior Lighting Switch
2. Switch rear window wiper /-washer
3. Fog lamp switch
4. Rear fog light switch
5. Reset for trip odometer
6. Speedometer
7. total-kilometer-counter
8. trip meter kilometer counter
9. Warning light block
10. Rev counter
11. Switch hazard warning lights
12. Sliding roof switch
13. Disconnectors for rear door windows
14. Switch rear window heating
15. Fuel display
16. cooling water thermometer
17. Oil pressure gauge
18. On-board computer display
19. Coin tray
20. Dashboard air outlet
21. Card reader lamp
22. Headlight dimmer switch, headlight flasher, horn, indicator lever
23. hood opener
24. Main light switches
25. ignition / starter
26. instrument panel lighting
27. Headlight wiper/washer
28. Door mirror setting
29. Handbrake
30. Speaker balance
31. Cassette holder
32. Ashtrays
33. Glove box opener
34. Air outlet
35. Cassette radio
36. Heating / Air distribution
37. On-board computer - Operation
38. Gear shift lever
39. Cigar lighter
